EviXscan Quadro+ for Quality Control
High quality 3D scanner for Quality Control

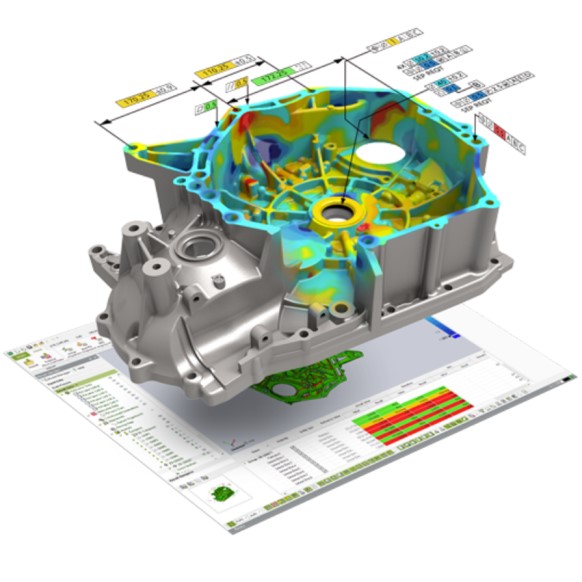

Collect true 3D surface data rapidly and with superb accuracy. Full GD&T capability with the Geomagic Control X software suite to ensure quality everywhere.
The Quadro+ is a universal scanner that can accelerate measurement workflows for objects of different sizes. Comprised of two scanning ranges in one device, the Quadro+ enables you to switch effortlessly, between fast geometry measurement of large objects and precise measurement of smaller parts.
This system can be fully automated with the EviXmatic 2.0 automatic scanning and measuring system, to provide a five-axis 3D scanning system that requires minimal operator involvement. For repetitive, fast, precise measuring and quality inspection tasks, the EviXmatic is a valuable addition to any production line.
Specifications
- Collect true 3D surface model data
- Whole surface and all geometric element measurements in a single operation
- No surface preparation normally required
- Easy transfer of data between different software packages
- Reverse engineer or extract traditional GD&T parameters fully automatically
- Designed for the production environment
- Automatic execution of multiple scanning scenarios
- Full repeatablility of scanning process without the need for user intervention
- Ability to use QR code readers
- Suitable for 24/7 operation in production environment
- Two scanning ranges in one device
- Easy to change scanning range with no need for re-calibration
- High quality pattern display with 1080 Mpix Blue LED projector
- Cobot and robot integration
- EviXscan 3D Suite 2.8 software as standard for optimum speed and quality
- Inner Range:
- Measuring range 220 x160 x 90mm
- Camera resolution 9 Mpix
- Point density 351 pts/mm2
- Outer Range:
- Measuring range 450 x 225 x180mm
- Camera resolution 12 Mpix
- Point density 88 pts/mm2
Case Study
Cooper Standard Automotive is a leading supplier of plastic and rubber components for the automotive industry.
Learn how they have successfully integrated EviXscan 3D scanners into their production processes for Quality Control, Reverse Engineering and Rapid Prototyping, shortening production time and lowering costs.
