Hawkeye V3 HD Video Borescope
The market’s best image quality videoscope with 4-way articulation
The Hawkeye V3 HD Video Borescope offers exceptional image and video quality, in fact, the best on the market today. The HD cameras generate crystal clear images with life-like colouring, accessible on a HD daylight-viewable colour touchscreen display by WiFi, or view remotely on a secondary device for ultimate flexibility.
It’s perfect for use on the shop floor, within quality control labs, for aircraft, engine and systems maintenance, and other high-precision applications. The V3 HD videoscope features a new micro HD video camera, 160° 4-way articulation and integrated adjustable LED illumination.
The V3 HD Videoscope is available in various kit variations. The standard kit includes a charger, flash drive and carry case, while the deluxe kit includes 90° prism and close focus tips, rigidiser, stand, neck strap and spare battery. All accessories can be ordered individually. Get in touch to talk to a member of the team.
Specifications
- Micro High Definition camera
- Adjustable super-bright micro LED illumination
- Durable tungsten sheathed vision tube
- 5.5" daylight-viewable touchscreen HD display
- Joystick controlled 4-way servo articulation
- 4.0mm or 6.1mm diameter
- 1.5m or 3.0m length
- 70°diagonal field of view
- Depth of Field: 18mm - ∞ (6-35mm with close focus tip)
- Operating Temperature Range: Tip -25 to +80C, Display -20 to +46C
- Weight 2.50KG
- Sheath IP67 (waterproof to 2.5m)
- Close-Focus Tips
- 90 degree Prism Tip
- V3 Rigidizer
- V3 Stand
- V3 Battery
- V3 Neck Strap
- V3 Battery Charger
Case Study

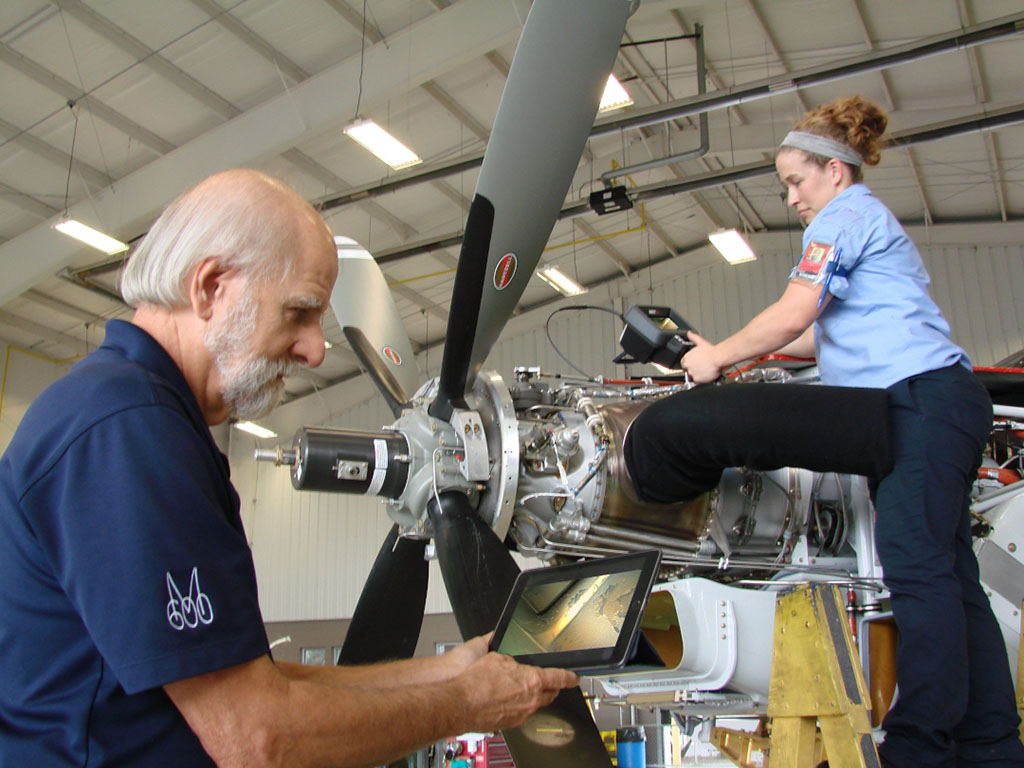

Hawkeye® borescopes allow aircraft maintenance technicians to inspect parts of engines and airframes which would otherwise require dismantling. Hartzell Propellors make propellors for a wide variety of aircraft types; they adopted Hawkeye borescopes to devolve inspection to production cells and empower their workforce.
